Source Code

            #include "Wire.h"
            #include "I2Cdev.h"

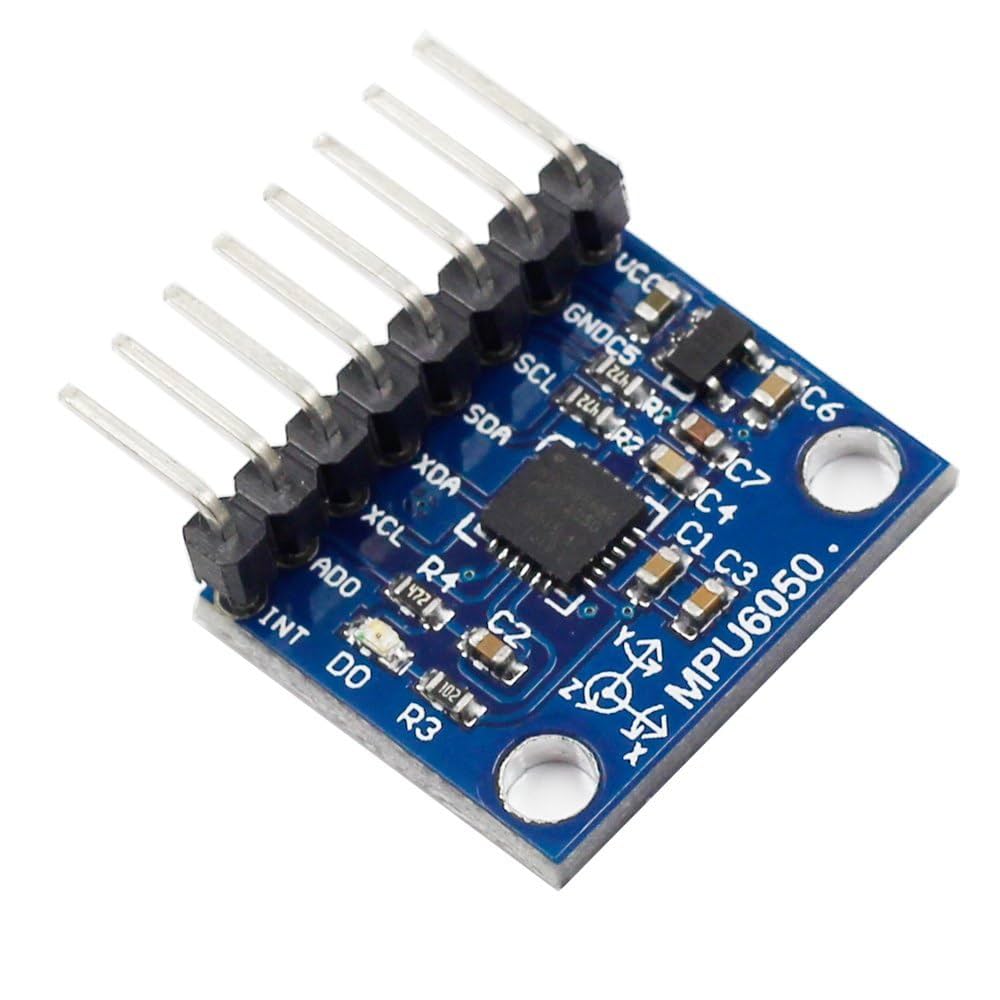

            #include "MPU6050.h"
            #include "WiFiS3.h"
            #include "MQTTClient.h"
            #include "math.h"

            MPU6050 mpu;
            int16_t ax, ay, az;
            int16_t gx, gy, gz;

            double start_degrees = -20;
            double end_degrees = 20;
            double degrees = 0;
            int count = 0;
            bool goingUp = false;

            // 0 = dumbbell | 1 = Barbell
            int mode = 1;

            // mqtt setup from chatgpt
            // ----------------- WiFi + MQTT -----------------
            const char WIFI_SSID[] = "TestLab";
            const char WIFI_PASSWORD[] = "11223344";

            const char MQTT_BROKER_ADDRESS[] = "mqtt-dashboard.com";
            const int MQTT_PORT = 1883;
            const char MQTT_CLIENT_ID[] = "arduino-uno-r4-client";
            const char MQTT_USERNAME[] = "";
            const char MQTT_PASSWORD[] = "";

            const char PUBLISH_TOPIC[] = "testtopic/Peemza";
            const char SUBSCRIBE_TOPIC[] = "testtopic/Peemza";

            WiFiClient wifiClient;
            MQTTClient client(256);

            unsigned long lastMsg = 0;

            // ----------------- ฟังก์ชันเชื่อมต่อ Wi-Fi -----------------
            void connectWiFi() {
            Serial.print("🔌 Connecting to WiFi...");
            WiFi.begin(WIFI_SSID, WIFI_PASSWORD);

            while (WiFi.status() != WL_CONNECTED) {
                delay(500);
                Serial.print(".");
            }

            Serial.println("\n✅ WiFi connected!");
            Serial.print("IP Address: ");
            Serial.println(WiFi.localIP());
            }

            // ----------------- ฟังก์ชันเชื่อมต่อ MQTT -----------------
            void connectMQTT() {
            Serial.print("🔗 Connecting to MQTT broker... ");
            while (!client.connect(MQTT_CLIENT_ID, MQTT_USERNAME, MQTT_PASSWORD)) {
                Serial.print(".");
                delay(1000);
            }
            Serial.println("\n✅ Connected to MQTT broker!");

            client.subscribe(SUBSCRIBE_TOPIC);
            }
            // from website
            void messageReceived(String &topic, String &payload) {
            Serial.println("Arduino UNO R4 - received from MQTT:");
            Serial.println("- topic: " + topic);
            Serial.println("- payload:");
            Serial.println(payload);

            if (payload == "mode=0") {
                mode = 0;
                Serial.println("switch to dumbbell");
            } else if (payload == "mode=1") {
                mode = 1;
                Serial.println("switch to barbell");
            }
            }

            // ----------------- setup -----------------
            void setup() {
            Serial.begin(9600);
            Wire.begin();
            mpu.initialize();

            if (!mpu.testConnection()) {
                Serial.println("❌ MPU6050 connection failed!");
                while (1);
            }

            Serial.println("✅ MPU6050 Ready...");

            connectWiFi();

            client.begin(MQTT_BROKER_ADDRESS, MQTT_PORT, wifiClient);
            client.onMessage(messageReceived);

            connectMQTT();
            delay(1000);
            }

            // ----------------- loop -----------------
            void loop() {
            client.loop();
            if (!client.connected()) {
                connectMQTT();
            }

            mpu.getMotion6(&ax, &ay, &az, &gx, &gy, &gz);

            double pitch = atan2(-ax, sqrt((ay * ay) + (az * az))) * 180.0 / PI;
            double roll  = atan2(ay, sqrt((ax * ax) + (az * az))) * 180.0 / PI;
            // https://samselectronicsprojects.blogspot.com/2014/07/getting-roll-pitch-and-yaw-from-mpu-6050.html

            // Dumbbell Mode
            if (mode == 0) {
                degrees = pitch;
                if (degrees > end_degrees && !goingUp) {
                goingUp = true;
                }
                if (degrees < start_degrees && goingUp) {
                count++;
                goingUp = false;
                sendMQTT();
                }
            }

            // Barbell Mode
            else if (mode == 1) {
                if (az > 10000 && !goingUp) {
                goingUp = true;
                }
                if (az < 7500 && goingUp) {
                count++;
                goingUp = false;
                sendMQTT();
                }
            }

            Serial.print("Mode: ");
            if (mode == 0) {
                Serial.print("Dumbbell");
            } else {
                Serial.print("Barbell");
            }
            Serial.print(" , Pitch: ");
            Serial.print(pitch, 2);
            Serial.print(" , Roll: ");
            Serial.print(roll, 2);
            Serial.print(" , az: ");
            Serial.print(az);
            Serial.print(" , Count: ");
            Serial.println(count);
            delay(200);
            }

            void sendMQTT() {
            String payload = "{\"mode\":" + String(mode) +
                            ",\"count\":" + String(count) +
                            ",\"az\":" + String(az) + "}";
            client.publish(PUBLISH_TOPIC, payload);
            Serial.print("Sent to MQTT: ");
            Serial.println(payload);
            }
